Product Detail

Model No.: SUNWELL B300000 Range

Production Capacity: 100 ton/month

Brand Name: SUNWELL

Means of Transport: Ocean

Delivery Date: Two weeks

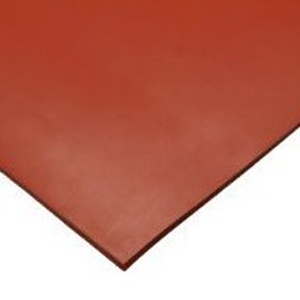

Styrene-butadiene Rubber Sheet (SBR Rubber) is produced by naturalrubber sheet blending with styrene butadiene.

Styrene-butadiene Rubber Sheet (SBR Rubber) is produced by naturalrubber sheet blending with styrene butadiene. The rubber has excellentmechanical properties, low compression set and high resilience. It alsohas excellent dynamic and rebound properties.
It is available in a wide range of hardness from 30o to 90o shore A.
It has good resistance to acids, alkalis and salts. SBR rubber is notrecommended for use in area where it could come in contact with oilsandhydrocarbons.

Application:
SBR rubber sheets are used as skit board sheets, bride bearing pads,shot plasting sheets, high tensile tangum sheets, commercial sheet withor without cotton/nylon insertion etc. Has excellent oil resistance.

Specification:

COMMERCIAL NATURAL RUBBER: BLACK
Code	Specific Gravity	Hardness (±5)	Tensile Strength	Elongation at break	Tear Strength	Abrasion Resistant	Compression Set at 70°C for 22 hrs	Working Temp.
Code	g / cm3	Shore A	(min) kg / cm2	(min) %	kg / cm	mm3 10N	%	°C Range
B311501	1.50	65	25	200	15	-	50	-10+70
B312001	2.00	75	15	150	12	-	80	-10+70
B311351	1.35	60	50	300	22	300	50	-30+70
B311502	1.50	70	35	250	12	480	60	-30+70
B311601	1.60	70	30	200	15	-	70	-10+70

COMMERCIAL NATURAL RUBBER: DIFFERENT COLORS
Code	Specific Gravity	Hardness (±5)	Tensile Strength	Elongation at break	Tear Strength	Abrasion Resistant	Compression Set at 70°C for 22 hrs	Working Temp.
Code	g / cm3	Shore A	(min) kg / cm2	(min) %	kg / cm	mm3 10N	%	°C Range
B311503	1.50	65	60	300	22	400	55	-25+70
B311401	1.40	60	65	300	20	350	45	-30+80

SPECIAL NATURAL RUBBER OFF WHITE COLORS
Code	Specific Gravity	Hardness (±5)	Tensile Strength	Elongation at break	Tear Strength	Abrasion Resistant	Compression Set at 70°C for 22 hrs	Working Temp.
Code	g / cm3	Shore A	(min) kg / cm2	(min) %	kg / cm	mm3 10N	%	°C Range
B321101	1.10	40(+5-4)	190	600	30	115	30	-50+70
B321201	1.20	50(+5-4)	170	500	35	115	30	-50+70
B321301	1.30	60(+5-4)	170	400	40	115	30	-50+70

SPECIAL NATURAL RUBBER BLACK COLORS
Code	Specific Gravity	Hardness (±5)	Tensile Strength	Elongation at break	Tear Strength	Compression Set at 70°Cfor 22 hrs	Working Temp.
Code	g / cm3	Shore A	(min) kg / cm2	(min) %	kg / cm	%	°C Range
B321051	1.05	40(+5-4)	190	600	40	30	-50+70
B321102	1.10	50(+5-4)	170	500	45	30	-50+70
B321151	1.15	60(+5-4)	170	400	50	30	-50+70

Standard Length	10 Mtr	10,000mm	33ft	11 yard
Standard Width	1.2 / 1.4/1.5 mtr	1200 / 1400 / 1500mm	4 / 4.6 / 5ft	1.33 / 1.53 / 1.65 yard
Standard Thickness	1 - 50 mm		1/32" - 2"
