Graphite PTFE Packing with Aramid Fiber Corners SUNWELL P307 manufacturer from China Ningbo Sunwell Sealing Materials Co.,ltd

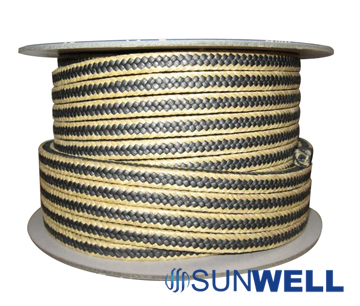

Graphite PTFE Packing with Aramid Fiber Corners

Price:	10.0~30.0 USD
Payment Terms:	T/T
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: SUNWELL P307

Production Capacity: 5,000 kg/month

Standard or Nonstandard: Standard

Material: Others

Means of Transport: Ocean

Delivery Date: Two weeks

Style: Others

Brand Name: SUNWELL

This packing is a multi-yarns packing. The corners of packing are made of aramid fiber yarns impregnated with graphite PTFE.

This packing is a multi-yarns packing. The corners of packing are madeof aramid fiber yarns impregnated with graphite PTFE, the friction facesare made of graphite PTFE yarns. This structure enhances thelubrication ability of aramid fiber and improves the strength of thepure graphite PTFE.

Typical Application
> This is a universal packing which can be used in all types of industry pumps.
> Chemical, petrochemical, pharmaceutical, food and sugar industries, pulp and paper mills, power stations, etc.

Prime Features
> Enhances the lubrication ability of aramid fiber and improves the strength of graphite PTFE
> The packing will no stain in pulp and paper mill, pharmaceutical, food and sugar industries.

Technical Data

Material	Dupont Aramid Fiber (with or without PTFE impregnated)
Temperature Range	-100 up to +280 oC
Process
Rotating	25 bar
Reciprocating	100 bar
Static	250 bar
Shaft Speed	25m/s
PH	2~12
Density	Appr. 1.4g/cm3
