Graphite Packing with Carbon Fiber Corners SUNWELL P403 manufacturer from China Ningbo Sunwell Sealing Materials Co.,ltd

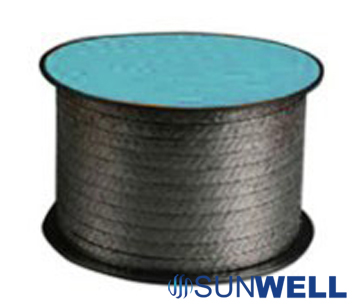

Graphite Packing with Carbon Fiber Corners

Price:	10.0~30.0 USD
Payment Terms:	T/T
Place of Origin:	zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: SUNWELL P403

Production Capacity: 5,000 kg/month

Standard or Nonstandard: Standard

Material: Others

Means of Transport: Ocean

Delivery Date: Two weeks

Style: Others

Graphite packing with carbon fiber corners is a multi-fiber packing, braided from expanded graphite yarns and carbon fibers.

There are multi inconel wires reinforced to create the packing with increased extrusion resistance capability.

Typical Application
> It can be used in many demanding applications, both dynamic and static
> Particularly suited for high temperature and high pressureservice in valves, pumps, expansion joints, mixers and agitators of pulpand paper, power station and chemical plant etc.

Prime Features
> More resistant to extrusion
> Increase the pressure handing capabilities.

Technical Data

Material	100% Expanded Graphite Yarn
Temperature Range	-200 up to +555 oC atmosphere; -200 up to +650oC in Steam
Process
Rotating	3 Mpa
Reciprocating	10 Mpa
Valves	28 Mpa
Shaft Speed	18m/s in rotary
PH	0~14
Density	1.5 g/cm3
